2.3. Solids Analysis
 |

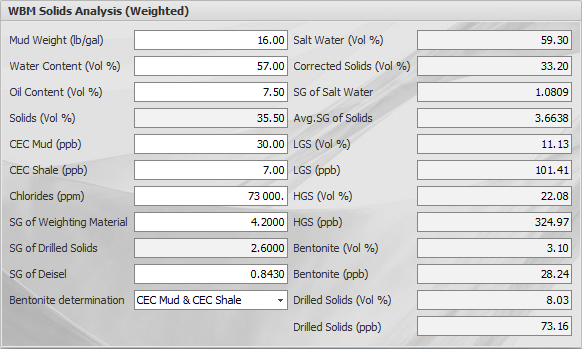

2.3.2. Water Base Mud (Weighted) |
Task is designed to calculate mud solids control parameters in case of water base mud content weighting material.
| Input Values | ||
 |
Mud Weight | Density of mud |
|
Water Content, Vol% | Water content in the mud |
|
Oil Content, Vol% | Oil content in the mud |
|
CEC Mud | Cation exchange capacity of mud |
|
CEC Shale | Cation exchange capacity of shale |
|
Chlorides | Concentration of chlorides |
|
SG of Weighting Material | Specific gravity of weighting material |
|
SG of Diesel | Specific gravity of diesel |
|
Bentonite determination | Bentonite Determination Method (CEC Mud & CEC Shale; CEC Mud) |
| Results | ||
 |
Solids, Vol% | Volume concentration of solids |
|
SG of Drilled Solids | Specific gravity of drilled solids |
|
Salt Water, Vol% | Volume concentration of salt water |
|
Corrected Solids, Vol% | Volume concentration of suspended solids |
|
SG of Salt Water | Specific gravity of salt water |
|
Avg.SG of Solids | Average specific gravity of solids |
|
LGS, Vol% | Volume concentration of low gravity solids in the mud |
|
LGS | Concentration of low gravity solids in the mud |
|
HGS, Vol% | Volume concentration of high gravity solids in the mud |
|
HGS | Concentration of high gravity solids in the mud |
|
Bentonite, Vol% | Volume concentration of bentonite in the mud |
|
Bentonite | Concentration of bentonite in the mud |
|
Drilled Solids, Vol% | Volume concentration of drilled solids in the mud |
|
Drilled Solids | Concentration of drilled solids in the mud |
