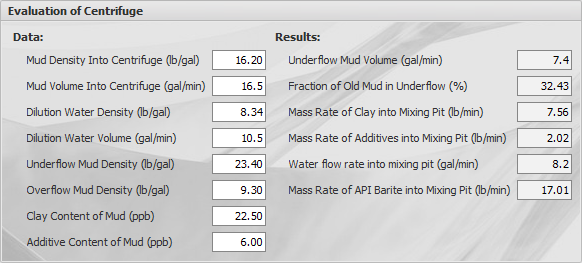

2.4. Solids Equipment Evaluation

---

2.4.2. Centrifuge

Task is used to evaluate centrifuge work process-related parameters.

Input Values
	Mud Density Into Centrifuge	Mud Density Into Centrifuge
	Mud Volume Into Centrifuge	Mud Volume Into Centrifuge
	Dilution Water Density	Dilution Water Density
	Dilution Water Volume	Dilution Water Volume
	Underflow Mud Density	Underflow Mud Density
	Overflow Mud Density	Overflow Mud Density
	Clay Content of Mud	Clay Content of Mud
	Additive Content of Mud	Additive Content of Mud
Results
	Underflow Mud Volume	Underflow Mud Volume
	Fraction of Old Mud in Underflow	Fraction of Old Mud in Underflow
	Mass Rate of Clay into Mixing Pit	Mass Rate of Clay into Mixing Pit
	Mass Rate of Additives into Mixing Pit	Mass Rate of Additives into Mixing Pit
	Water flow rate into mixing pit	Water flow rate into mixing pit
	Mass Rate of API Barite into Mixing Pit	Mass Rate of API Barite into Mixing Pit
