2.7. Volumes

---

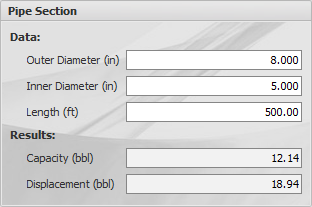

2.7.1. Pipe Volume

This task is a tool to calculate pipe section capacity and displacement.

Input Values
	Outer Diameter	Pipe outer diameter
	Inner Diameter	Pipe inner diameter
	Length	Pipe length
Results
	Capacity	Pipe capacity
	Displacement	The volume of fluid displaced by pipe trip in or pull out
