2.7. Volumes

---

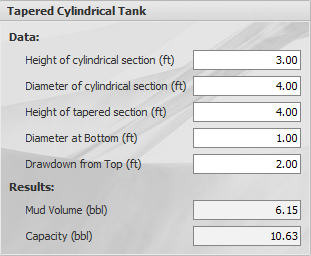

2.7.7. Tapered Cylindrical Tank

This task is used to calculate tapered cylindrical tank capacity and volume of mud in the tank.

Input Values
	Height of cylindrical section	Height of cylindrical section
	Diameter of cylindrical section	Diameter of cylindrical section
	Height of tapered section	Height of tapered section
	Diameter at Bottom	Truncated cone diameter at tank bottom
	Drawdown from top	The distance from tank top till fluid surface
Results
	Capacity	Tank capacity
	Mud Volume	Volume of mud in tank
