2.6. Fluid Engineering and Functions

---

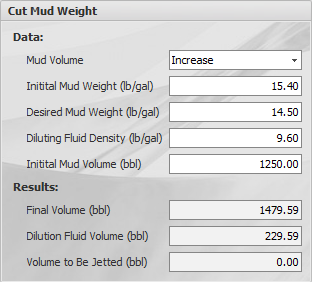

2.6.2. Cut Mud Weight

Task is used to perform calculations for mud dilution. Calculations are available for two cases: mud volume might be increased or should be unchanged.

Input Values
	Mud Volume	The way of operation, is it permissible to increase the volume of the mud or whether it should be unchanged
	Initial Mud Weight	Density of the mud before the operation
	Desired Mud Weight	Density of the mud after the operation
	Diluting Fluid Density	Density of dilution fluid. Must be less than 'Desired Mud Weight'
	Initial Mud Volume	Volume of the mud before the operation
Results
	Final Volume	Volume of the mud after operation. In case if Mud Volume is Constant is equal Initial Mud Volume otherwise greater
	Dilution Fluid Volume	Required volume of dilution fluid
	Volume To Be Jetted	Volume to be jetted. Greater than 0.0 in case if Mud Volume is equal Constant
